Boost Efficiency and Power for All Diesel Applications
Total Seal’s exclusive new Diesel Ring Designs help these engines unleash their full potential by greatly improving efficiency while increasing horsepower and torque. They are ideal for OE rebuilds, towing and industrial apps, street performance, and all the way to 1,000 HP engines for full on competition. The new sets are available in Gapless® 2nd, or Conventional 2nd Ring configurations, depending on your application.

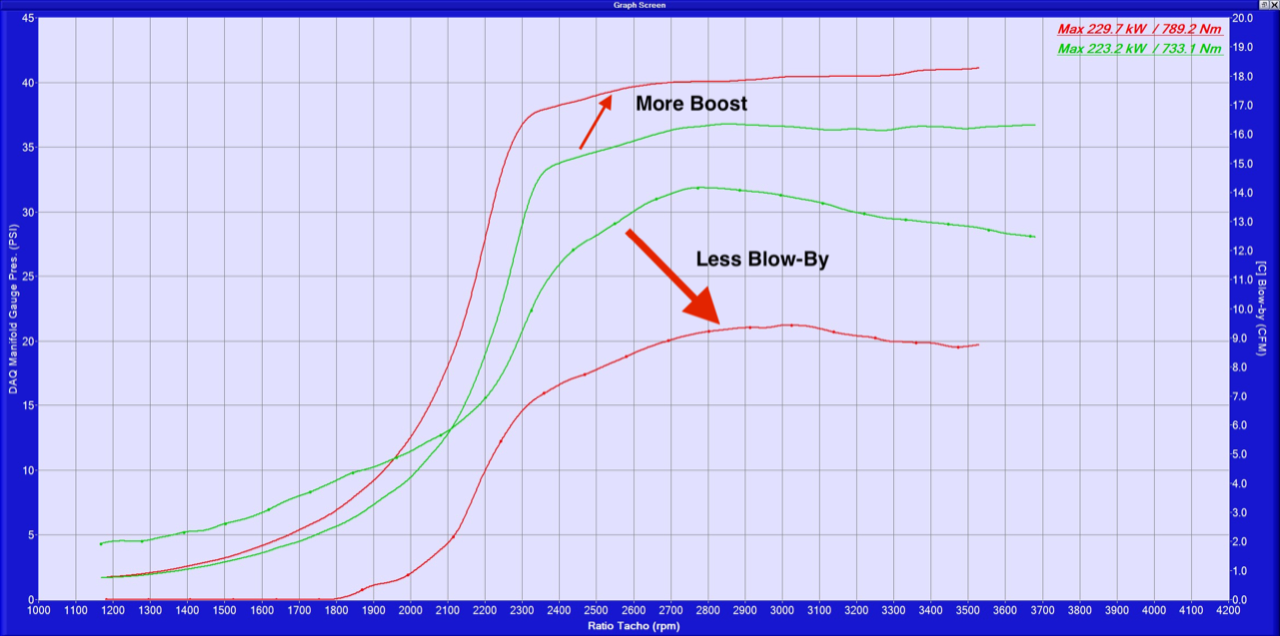

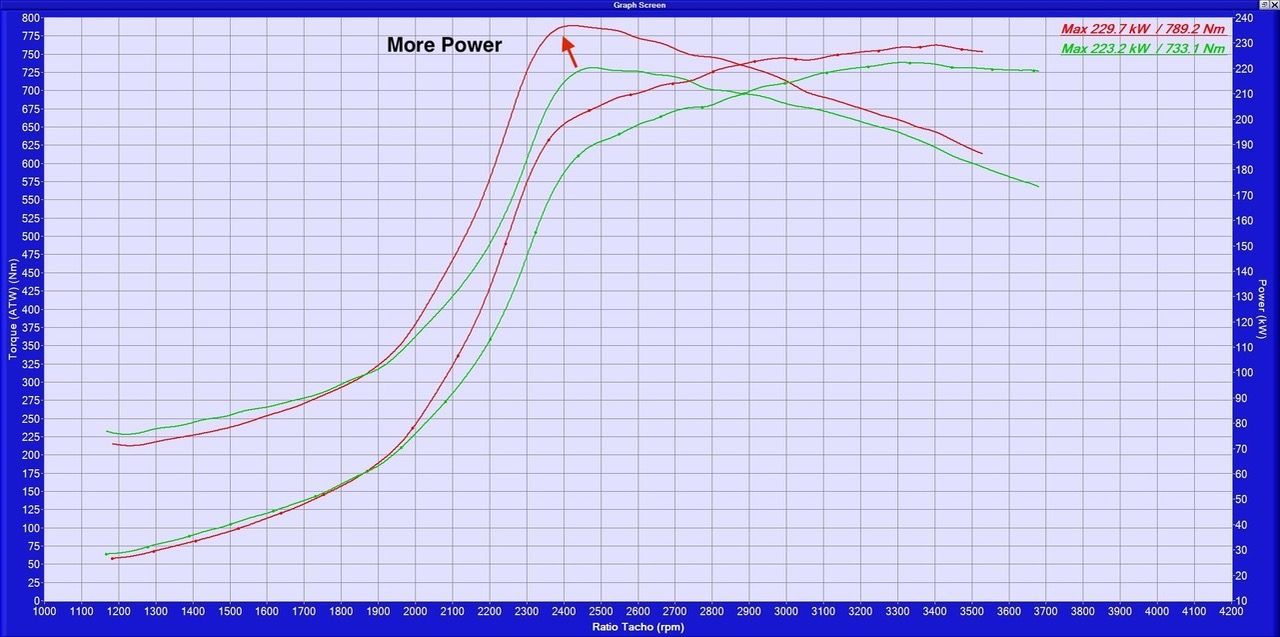

Gapless Rings Increase Power
Total Seal's High-Strength Martenstic Ductile Iron Rings
Top and 2nd rings are crafted from Martenstic Ductile Iron, the highest strength iron available, specially heat treated and coated with CrN (Chromium Nitride is a chemical compound of chromium and nitrogen with the formula CrN. It is very hard, and is extremely resistant to corrosion) for lasting durability and reduced wear. Gapless® Second Ring – Patented Total Seal Gapless® design keeps fuel out of the oil and reduces turbo lag. This is the ring of choice for high performance or high
efficiency applications.

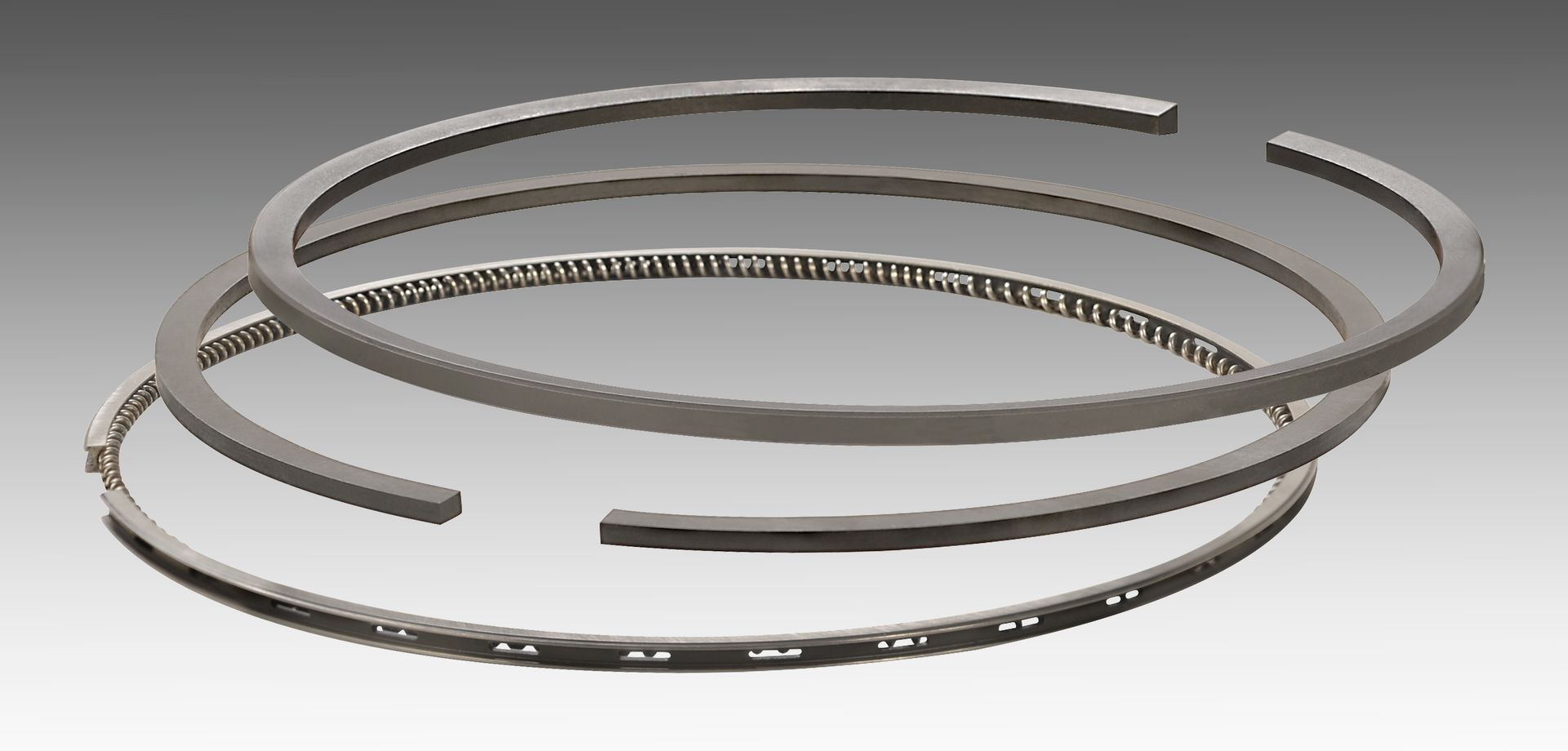

Conventional 2nd Ring Diesel Set
Optimize Performance and Longevity with Conventional 2nd Ring

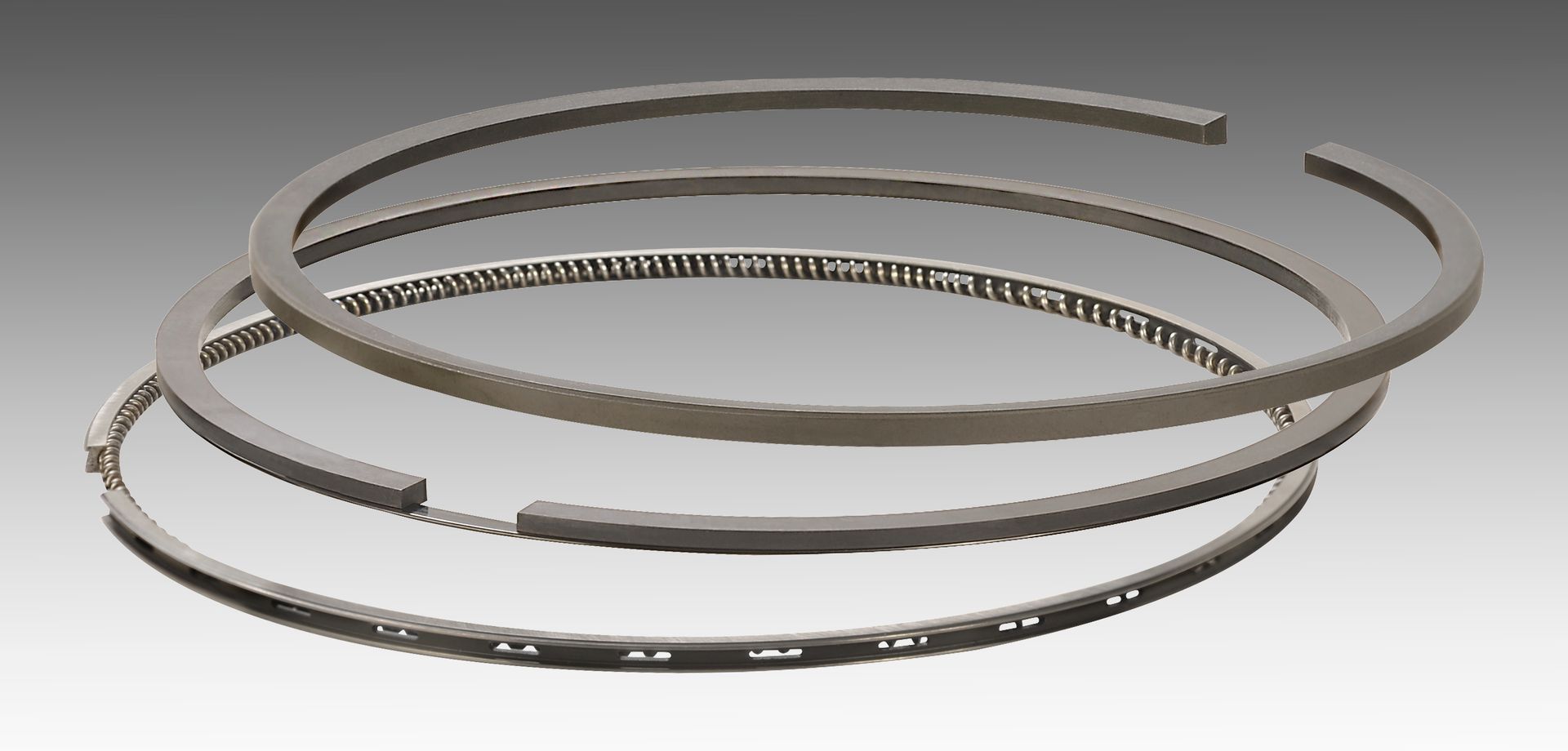

Gapless 2nd Ring Diesel Set
Conventional 2nd Ring - Premium quality ring with a conventional end gap. Ideal for stock rebuilds and mild performance applications. Oil Ring – Nitrited 2-piece oil rings with durable chrome face coating. Benefits include; longer lasting, better sealing, maximum performance, lower oil temperature, cleaner, longer lasting oil. New Total Seal® Diesel Ring Sets available for:
• Cummins 5.9L and 6.7L
• Duramax 6.6L
• Ford Powerstroke 6.4L to 7.3L
• Custom sets also available

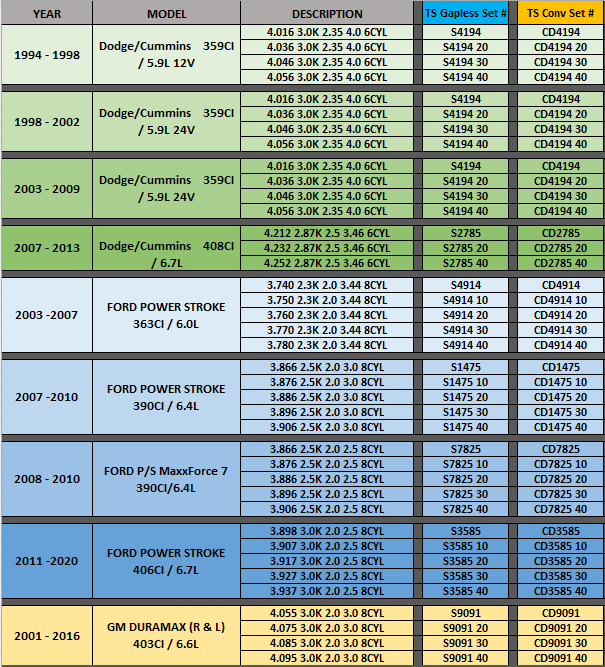

Engine Applications
Total Seal’s exclusive new Diesel Ring Designs help these engines unleash their full potential by greatly improving efficiency while increasing horsepower and torque. Our patented Gapless ring technology doubles the life of your engine oil by greatly reducing soot contamination. These rings are ideal for OE rebuilds, towing and industrial apps, street performance, and all the way to 1,000 HP engines for full on competition. The new sets are available in Gapless® 2nd, or Conventional 2nd Ring configurations, depending on your application.
We tailor ring sets to the specific needs of an engine. As a result, that engine runs more efficiently. Our piston rings have been improving the efficiency of race engines in every form of motorsports for decades, but we also do it for compressors, aviation, and agricultural engines, as well as any engine that has piston rings. Utilizing piston ring design to greatly increase engine efficiency is what we do best.
If engines work to make profit for your company, we can help those engines make more money for you. We’d love to discuss any of the options you may need directly with you.
More Power AND More Savings
Engines that consume less fuel and compressors that draw less current would save a company on fuel and energy costs over time, especially with today’s fuel costs.
Engines and compressors that last longer obviously save money by reducing replacement/rebuild costs.
Engines with less blow-by enable longer engine oil life, which can save money through fewer oil changes (both in labor and oil costs).
With inflation driving up the cost of materials and labor, isn’t now the best time to look for areas to improve efficiency?
Well, the number one source of friction and wear in engines are the piston rings rubbing against the cylinder walls. Multiple research studies from FORD and the US Department of Energy have concluded that the piston ring and cylinder wall account for as much as 40% of all engine friction. No wonder today’s OEM engines have thinner piston rings than their predecessors.
The Next Evolution in Piston Ring Technology
GAS-PORTED
Piston Rings
The primary job of the piston ring is to create the seal between the piston and the cylinder wall. Our new Gas-Ported piston rings represent an evolution in ring seal. The conventional practice of thick, heavy, high tension rings that fought against cylinder pressure to maintain seal has been revolutionized. Instead of fighting cylinder pressure, gas ported rings harness those forces and use them to improve ring seal. These advanced rings benefit all engines, especially turbocharged and supercharged engines.
Gas-ported performance without gas-ported pistons
Features strategically sized and placed horizontal slots in the ring allowing combustion gas to enter through the groove and behind the ring to gas-load the ring providing greatly improved ring sealing.
Extensively tested in virtually every form of engine with the same increases in ring sealing time after time.
Applications are available in both steel and ductile iron for top ring placements. When ordering simply ask for Gas-Ported on your top ring sets.
